SmartIP

(1) 2 3 (4)

The SmartIP microprocessor controlled knee employs intelligent programming technology that dynamically programs the knee to optimum swing settings for the individual Level 2-3-(4) activity user, reducing the amount of energy expended by trans-femoral prosthesis users. The weight activated stance control provides an adjustable smooth and yielding transition at toe off.

Key Features

Smart Programming, electromechanical, adjustable terminal impact and extension damping
Comfortable gait from very slow to very fast walking speeds
Smoother speed progression because of enhanced program
Weight activated stance control
Stanceflex option improves comfort
Battery life expectancy 9-12 months under normal usage
140° knee flexion
4-Bolt option reduces build height

SmartIP Technical Data

Max. User Weight:

125kg

Activity Level:

1 2 3 4*

Component Weight:

1.27kg Stanceflex
1.15kg 4-Bolt

Build Height:

238-262mm

Control Unit:

Swing: MPK/Pneumatic
Stance: Mechanical

*Maximum user weight 100kg

Accessories

Socket Adapters

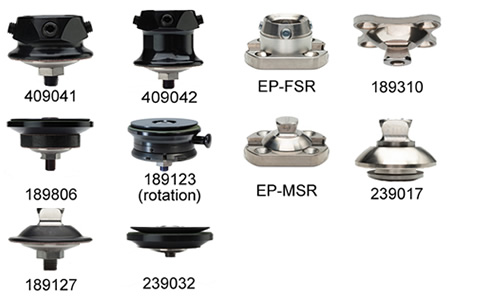

SmartIP Socket Adapters

Ordering

Part Numbers:

Stanceflex options:

SMARTIPSF30
SMARTIPSFPYR

4-Bolt options:

SMARTIP4B30
SMARTIP4BPYR
