Blatchford Structural Adapters

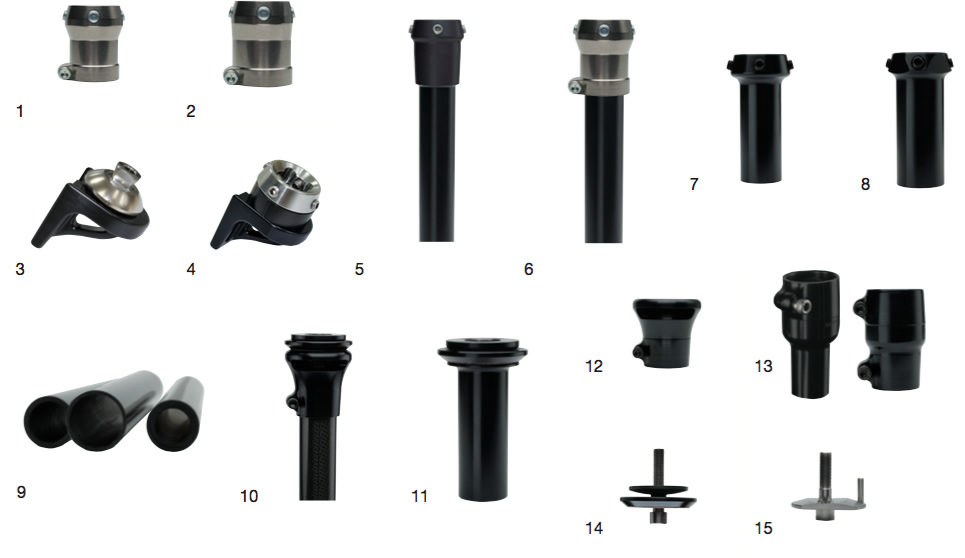

  Description Part Number Build Height Material Weight

Max. Weight / Activity Level
1 Tube clamp adapter pyramid female 30mm AK30M1 15mm (51mm) Titanium 92g

150kg / 1-3

145kg / 1-4
  Tube clamp adapter pyramid female 35mm AK35M1 15mm (51mm) Titanium 92g

120kg / 1-3

100kg / 1-4
3 Blade top housing TT male – sliding & rotating 539601 7mm Aluminium/Titanium 165g 166kg / 1-3 130kg / 1-4
4 Blade top housing TT female – sliding & rotating 539602 28mm Aluminium/Titanium 240g 166kg / 1-3 130kg / 1-4
5 Pylon adapter pyramid female

739052

 15mm (51mm + tube) Aluminium 213g

125kg / 1-3

100kg / 1-4
    739053       125kg / 1-3 100kg / 1-4
    739054       125kg / 1-3 100kg / 1-4
6 High strength tube adapter single 30mm 239030 15mm (51mm + tube) Titanium/Carbon Fiber 272g 125kg / 1-3 100kg / 1-4
  High strength tube adapter double 30mm 239029 20mm + tube (250 max)   364g 125kg / 1-3 100kg / 1-4
7 Pylon adapter pyramid female 30mm – low profile 409053 60mm min, 90mm max Aluminium 97g 125kg / 1-3 100kg / 1-4
8 Pylon adapter pyramid female 35mm – low profile 409038 60mm min, 95mm max Aluminium 107g 125kg / 1-3 100kg / 1-4
9 Pylon 35mm 330108 250mm max Carbon Fiber 93g 125kg / 1-3 100kg / 1-4
  High strength pylon 30mm 330146 250mm max   180g 150kg / 1-3 145kg / 1-4
  Pylon 30mm/500mm 903220/500 500mm max Aluminium 150g min 125kg / 1-3 100kg / 1-4
  Pylon 30mm/400mm 903220/400 400mm max     125kg / 1-3 100kg / 1-4
  Pylon 30mm/200mm 903220/200 200mm max     125kg / 1-3 100kg / 1-4
10 Pylon adapter 35mm – full alignment 019231 95mm (280mm) Aluminium/Carbon Fiber 360g 120kg / 1-3 100kg / 1-4
11 Pylon adapter full alignment female 35mm – low profile 339140 43mm (95mm) Aluminium 185g 100kg / 1-3  120kg / 1-4
  Pylon adapter full alignment female 30mm – low profile 339240   Aluminium   100kg / 1-3
12 Top housing TT 30mm – full alignment 339008 25mm (59mm) Aluminium 142g 100kg / 1-3
  Top housing TT 35mm – full alignment 339009       120kg / 1-3  100kg / 1-4
13 Tube clamp double adapter – female 35mm to female 30mm 339501 4mm (70mm) Aluminium 102g 125kg / 1-3 100kg / 1-4
  Tube clamp double adapter – female 35mm to male 30mm 339301 34mm (85mm)

125kg / 1-3

 100kg / 1-4
14 Ankle disarticulation kit – Blatchford dome 339101 20mm Aluminium/Stainless Steel 141g 125kg / 1-3 100kg / 1-4
15 Multiflex Ankle/Seattle Lightfoot connector 409012 4.5mm Stainless Steel 102g 125kg / 1-3 100kg / 1-4
